KEMING Series Manual Grouting Pump

KEMING Series Manual Grouting Pump

• Introduction

Manual pump is mainly used for delivery or pressure grout of cement slurry and other fluids like cement.

• Technical parameters

Model	KB Manual Pump
Capacity	0~8 L/min
Max. Pressure	1MPa
Cylinder Dia.	110mm
Piston Stroke	42mm
Inlet Dia.	25mm
Outlet Dia.	25mm
Weight	40kg
Dimensions (LxWxH)	980x290x590mm (customer require)

• Operation

Connect the suction pipe( the length is less than 3m) and discharge pipe, and insert the suction pipe into material hopper.

Shake rocker manually. The slurry will be sucked in and discharged continuously under the reciprocating motion of piston.

• Maintenance

Clean the pump and pipes with clean water after each work shift, as follows:

1. Insert the suction pipe into clean water, and shake rocker manually until the clean water is out from discharge pipe;
2. Stir the steel ball inside suction inlet with steel wire to exhaust the residual water in piston chamber from suction inlet;
3. Tip the pump at an angle of 90 degree to exhaust the residual water in upper cavity of steel ball from discharge outlet.

Manual pump

Ref:
1.KB Manual Pump
2. Main Products: shotcrete machine / gunite machine, concrete pump, grouting
pump, plaster machine, concrete mixing machine, concrete foaming machine, etc.

ZBYSB Series Variable Speed Hydraulic Pump

ZBYSB Series Variable Speed Hydraulic Pump

Introduction:

Keming ZBYSB Series Hydraulic Pump is a grouting machine with constant power and variable output, which can achieve single liquid grouting and double liquid grouting, mainly used for delivery cement slurry or other fluid materials.

Features:

1.This pump adopts hydraulic medium (slurry,hydraulic oil) to transmit the pressure signal,forming a closed automatic control system.

2.The pump adopts double fluid grout pump adjuster with accurate adjustment and no over-pressure performance.

3.The pump adopts new hydraulic system, stable reversing device, reliable performance.

4.The pump can achieve continuously adjustable flux output and output pressure, and automatically adjust the flux output according to the requested grouting pressure.

5.The pump is equipped with an accumulator with large capacity, achieving zero-speed reversion, and a cooler with large contact area, prolonging the continuous run time.

6.Small size, light weight, convenient movement and operation.

Parameters:

Power	Model	Rated output (L/min)	Rated pressure (Mpa)	Dimensions (mm)	Weight (kg)
7.5kw	ZBYSB100/9-7.5	100	9	2580*1000*1400	700
	ZBYSB40/22-7.5	40	22
	ZBYSB50/18-7.5	50	18
	ZBYSB66/13-7.5	66	13
	ZBYSB80/11-7.5	80	11
	ZBYSB140/6-7.5	140	6
15kw	ZBYSB100/17-15	100	17	2580*1000*1400	730
	ZBYSB150/12-15	150	12
	ZBYSB100/20-18.5	100	20
	ZBYSB120/17-18.5	120	17
	ZBYSB150/14-18.5	150	14
	ZBYSB60/33-18.5	60	33
	ZBYSB80/28-18.5	80	28
22kw	ZBYSB220/11-22	220	11	2580*1000*1400	760
	ZBYSB320/8-22	320	8
	ZBYSB180/15-22	180	15
37kw	ZBYSB120/26-37	120	26	2580*1000*1400	790
	ZBYSB180/18-37	180	18
	ZBYSB220/15-37	220	15
	ZBYSB320/10-37	320	10
	ZBYSB80/45-37	80	45
55kw	ZBYSB500/12-55	500	12	2580*1000*1400	820
	ZBYSB140/44-55	140	44
	ZBYSB190/32-55	190	32
	ZBYSB280/22-55	280	22
	ZBYSB700/8-55	700	8
	ZBYSB340/18-55	340	18

Pictures:

2ZBYSB Hydraulic Pump

2ZBYSB Hydraulic Pump

Application:

1.ZBYSB series hydraulic grout pump is widely applied for high-pressure high-volume grout for blocking and reinforce in mining well, tunnel, hydraulic engineering, subway, bridge and building construction.

2.ZBYSB series grout pump is a hydraulic reciprocating pump with low-frequency stroke and high thrust, so it can grout backward and grout thick slurry or liquid with particles.

3.ZBYSB series grout pump can grout single liquid, double liquid or chemical liquid.


Ref.:
1.ZBYSB Hydraulic Grout Pump
2.Main Products: shotcrete machine / gunite machine, concrete pump, grouting pump, plaster machine, concrete mixing machine, concrete foaming machine, etc.

KBY Series Hydraulic Pump

KBY Series Hydraulic Pump

Introduction:

Keming KBY Series Hydraulic Pump is a grouting machine which can achieve single liquid grouting and double liquid grouting, mainly used for delivery cement slurry or other fluid materials.

Features:
1.Adjustable grouting pressure within the rated pressure.
2.Perfect waterproof device.
3.Separated control valves.
4.Single or double fluid grouting.
5.Special suction-discharge valve and sealing structure.
6.Advanced monitoring system with double seismic pressure gauges.
7.Small size,light weight,flexible movement,reliable performance.

Technical Parameters:

Power	Model	Rated output (L/min)	Rated pressure (Mpa)	Dimension (mm)	Weight (kg)
7.5kw	KBY-50/5-7.5	50	5	1500×920×950	350
11kw	KBY60/7-11	60	7	1500×920×950	400
	KBY50/10-11	50	10
	KBY40/12-11	40	12
	KBY25/21-11	25	21
15kw	KBY90/7-15	90	7	1500×920×950	400
22kw	KBY90/15-22	90	15	1500×920×950	450
	KBY70/16-22	70	16
	KBY50/21-22	50	21
	KBY15/2-22	15	2
30kw	KBY60/25-30	60	25	1500×920×950	480
37kw	KBY90/21-37	90	21	1500×920×950	510

Application:

1. KBY Hydraulic Pump used to grout mortar, cement paste, slurry and other liquid (particle size ≤ 3mm).2.mainly applied in mining well, tunnel, hydraulic engineering, subway, bridge and building construction, to grout for water blocking, fill in void or reinforce the crumbly strata.

Pictures:

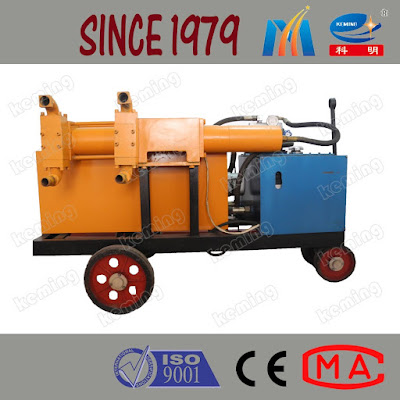

KBY Hydraulic Pump

KBY Hydraulic pump

Ref.:
1. KBY Hydraulic Grout Pump
2. Main Products: shotcrete machine / gunite machine, concrete pump, grouting
pump, plaster machine, concrete mixing machine, concrete foaming machine, etc.
