KBS Series Hydraulic Shotcrete Pump
Features:- high efficiency: full hydraulic pumping technology greatly enhances the system reliability.
- advanced S tube distribution valve: pumping larger aggregates mortar/concrete.
- wear plate and cut ring adopts rigid and wearable alloy materials,longer longevity.
- low consumption of equipment parts: main wearing parts can spray for not less than 3000m3 (10 times longer than the service life of rotary-piston wet shotcrete machine)
- centralized lubrication system effectively prolongs the service life of wearing parts.
- long spraying distance: the maximal spraying distance is up to 200m horizontally and 80m vertically.*
- continuously adjustable flux (stepless speed change).
- adjustable accelerator adding volume (stepless speed change within 0~9%).
- small and flexible wheel design, convenient movement and simple maintenance.
Parameters:
Items
|
Unit
|
Parameters
| ||
KMB-8
|
KMB-6
|
KMB-4
| ||
Capacity
|
m3/h
|
8
|
6
|
4
|
Max. aggregate size
|
mm
|
15
|
15
|
15
|
Fineness modulus
|
≥2.5
|
≥2.5
|
≥2.5
| |
Delivery pipe
|
mm
|
DN100/DN80
|
DN100/DN80
|
DN80/DN65
|
Concrete slump
|
cm
|
10~18
|
10~18
|
10~18
|
Max. conveying dist.
|
m
|
150/80
|
120/50
|
100/40
|
Main motor power
|
kw
|
22
|
18.5/15
|
15/11
|
Max. operating oil pressure
|
M pa
|
19
|
15/12
|
14/11
|
Max. output pressure
|
M pa
|
8
|
6/5
|
5/4
|
Feeding height
|
mm
|
1100
| ||
Dimensions (L×W×H)
|
mm
|
2990×1200×1140
| ||
Weight
|
kg
|
1600
| ||
Pictures:
 |

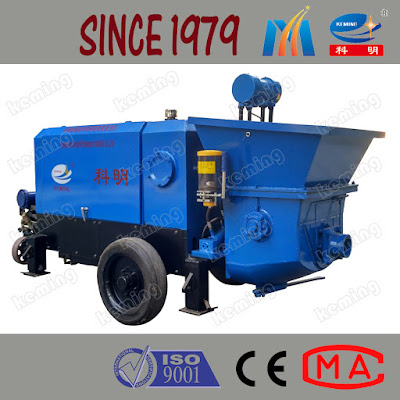

| KBS Shotcrete Pump |
